產品介紹
中心拉片錐形塞
紅色LDPE
Centre Pull Plugs
中心的拉片易于裝配和拆除
提供在存儲和運輸中防塵, 防潮和防腐保護
產品圖紙
產品規格齊全，更多規格詳情可與我們聯系：18913091313
| 編號 | 配用螺紋尺寸公制 | 配用螺紋尺寸UNF | 配用螺紋尺寸BSP | d1(mm) | d2(mm) | D(mm) | h(mm) | H(mm) |
| HLPZX001 | M8 | 5/16" | - | 6.2 | 7.7 | 11.1 | 9.5 | 20.5 |
| HLPZX002 | - | - | - | 6.8 | 8.5 | 11.9 | 10.3 | 15.9 |
| HLPZX003 | M10 | 7/16" | 1/8" | 8.4 | 10 | 13.5 | 9.5 | 20.5 |
| HLPZX004 | - | 3/8" | - | 9.5 | 10.8 | 14 | 9.5 | 20.5 |
| HLPZX005 | - | - | - | 9.2 | 10.9 | 15.1 | 9.5 | 19.1 |
| HLPZX006 | - | - | - | 10.2 | 11.8 | 15.9 | 9.5 | 19.1 |
| HLPZX007 | M12 | 1/2" | 1/4" | 10.9 | 12.3 | 15.9 | 9.5 | 20.3 |
| HLPZX008 | - | - | - | 11.4 | 13 | 16.7 | 10.3 | 14.3 |
| HLPZX009 | M14 | 9/16" | - | 11.7 | 13.7 | 17.2 | 11 | 22 |
| HLPZX010 | - | - | - | 12.7 | 14.4 | 18.3 | 11.9 | 20.6 |
| HLPZX011 | M16 | 5/8" | 3/8" | 14.2 | 16 | 19 | 11.9 | 22.9 |
| HLPZX012 | - | - | - | 14.7 | 17 | 20.6 | 13.5 | 19.1 |
| HLPZX013 | - | - | - | 15.5 | 17.7 | 21.3 | 13.5 | 19.8 |
| HLPZX014 | M20 | 3/4" | - | 16.4 | 18.3 | 22.2 | 12.3 | 23.5 |
| HLPZX015 | - | 13/16" | 1/2" | 17.8 | 20 | 23.8 | 13.7 | 24.5 |
| HLPZX016 | - | - | - | 18.5 | 21 | 25.4 | 15 | 21.3 |
| HLPZX017 | M24 | 7/8" | 5/8" | 21.3 | 23.2 | 27 | 15.9 | 26.9 |
| HLPZX018 | - | - | - | 22.1 | 24.7 | 28.5 | 19.1 | 25.4 |
| HLPZX019 | - | 1” | - | 22.5 | 25.5 | 28.9 | 17.8 | 29 |
| HLPZX020 | M28,M30 | 11/8" | - | 24.7 | 27.7 | 32 | 19 | 30 |
| HLPZX021 | - | - | - | 24.6 | 27.7 | 31.8 | 19.8 | 26.2 |
| HLPZX022 | - | - | - | 26.1 | 29.1 | 34 | 19.1 | 25.4 |
| HLPZX023 | - | - | - | 27.8 | 31 | 35.8 | 19.8 | 25.4 |
| HLPZX024 | - | - | - | 29.2 | 32.7 | 39.4 | 19.1 | 25.4 |
| HLPZX025 | - | - | - | 32.8 | 33.2 | 38.1 | 19.8 | 25.4 |
| HLPZX026 | - | - | - | 33.3 | 37.2 | 41.2 | 19.1 | 25.4 |
| HLPZX027 | - | - | - | 34.1 | 38.8 | 44.5 | 22.4 | 25.4 |
| HLPZX028 | - | - | - | 36.9 | 40.7 | 44.5 | 19.1 | 25.4 |
| HLPZX029 | - | - | - | 41 | 44.1 | 48.4 | 18.3 | 28.6 |
| HLPZX030 | - | - | - | 45.9 | 49.2 | 54.9 | 25.4 | 31.8 |
| HLPZX031 | M52 | - | - | 48.2 | 52.7 | 57.1 | 25.4 | 26.4 |
| HLPZX032 | M58,M60 | - | 2” | 55 | 61 | 65 | 25 | 26 |
| HLPZX033 | M62 | - | - | 59.3 | 67.3 | 70.6 | 30.7 | 31.5 |
| HLPZX034 | - | - | - | 67.4 | 70.2 | 74.6 | 25 | 26 |

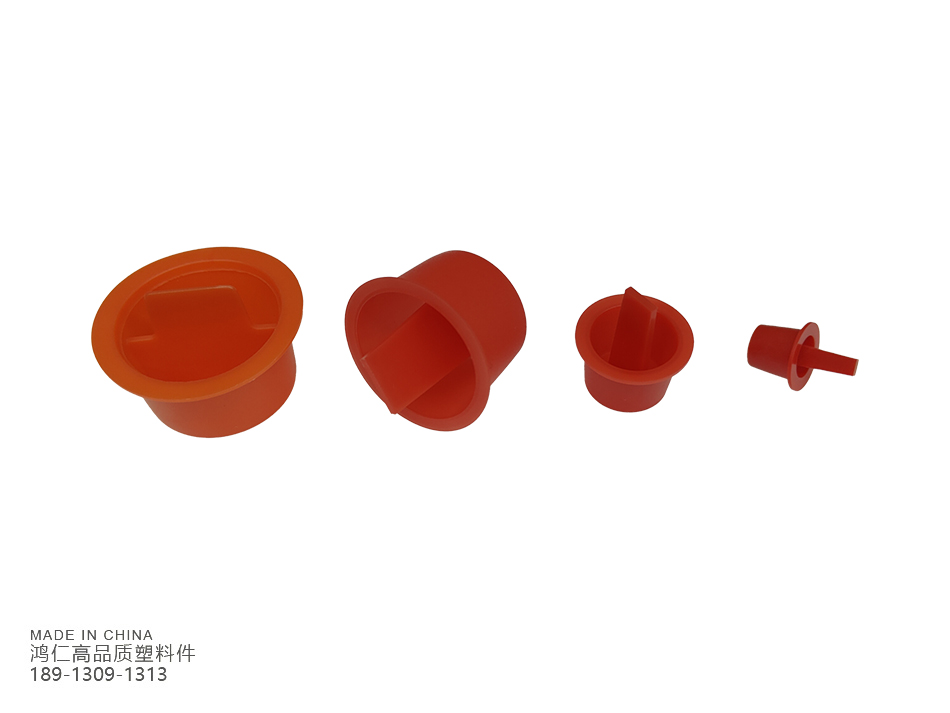

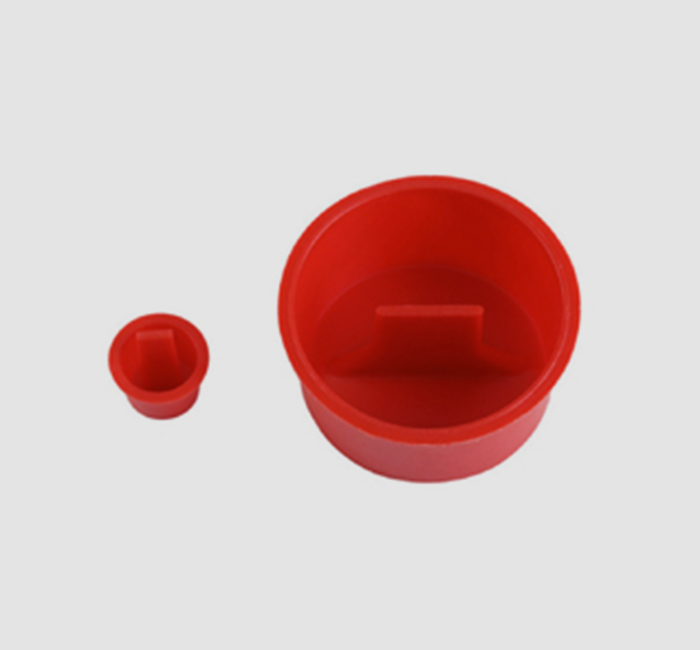

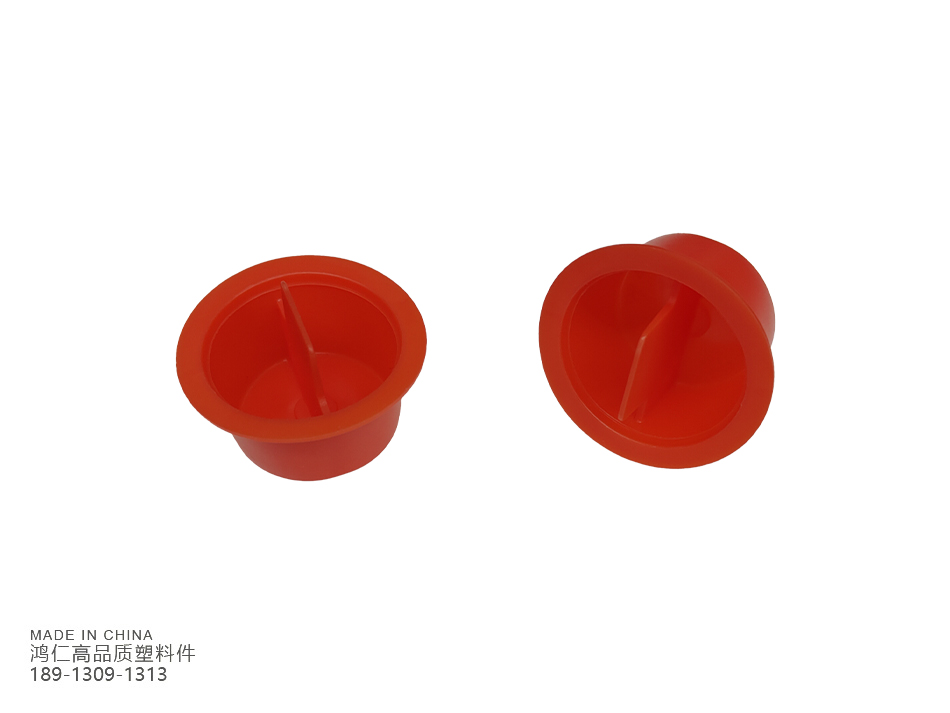

產品詳細圖
